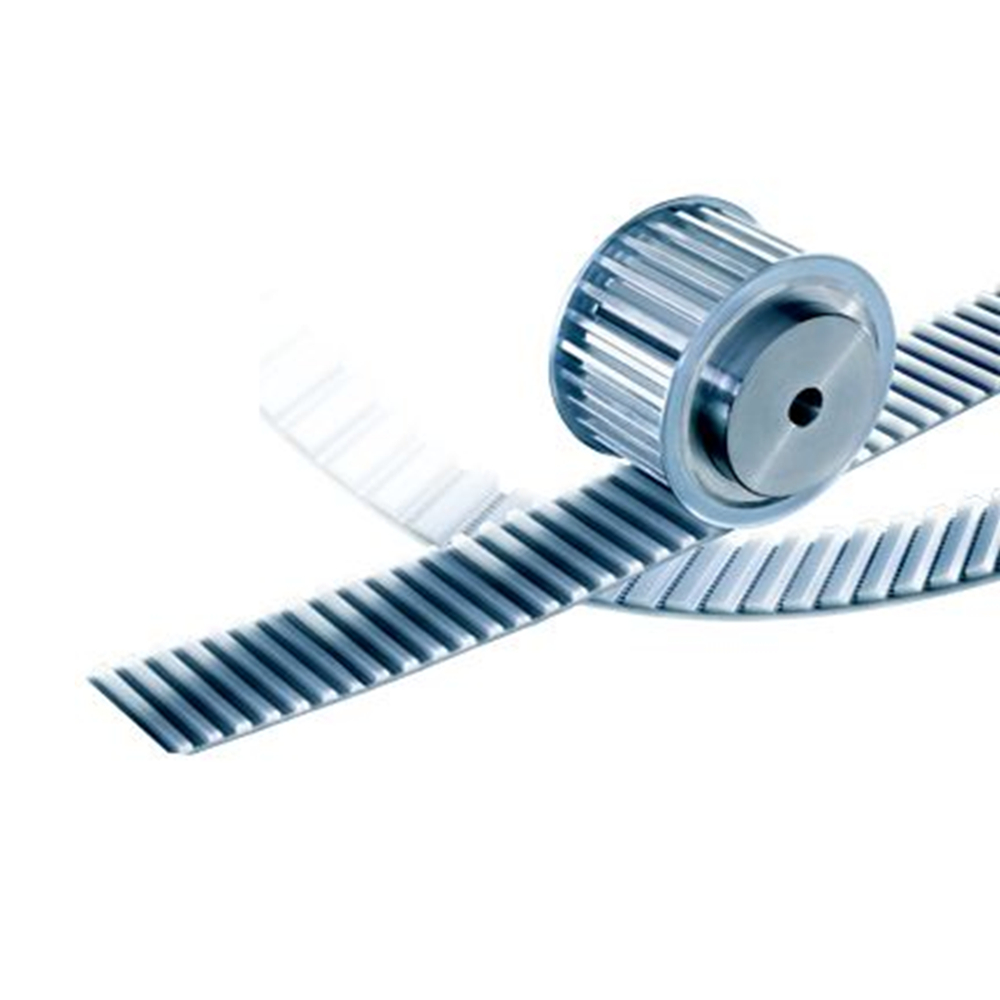

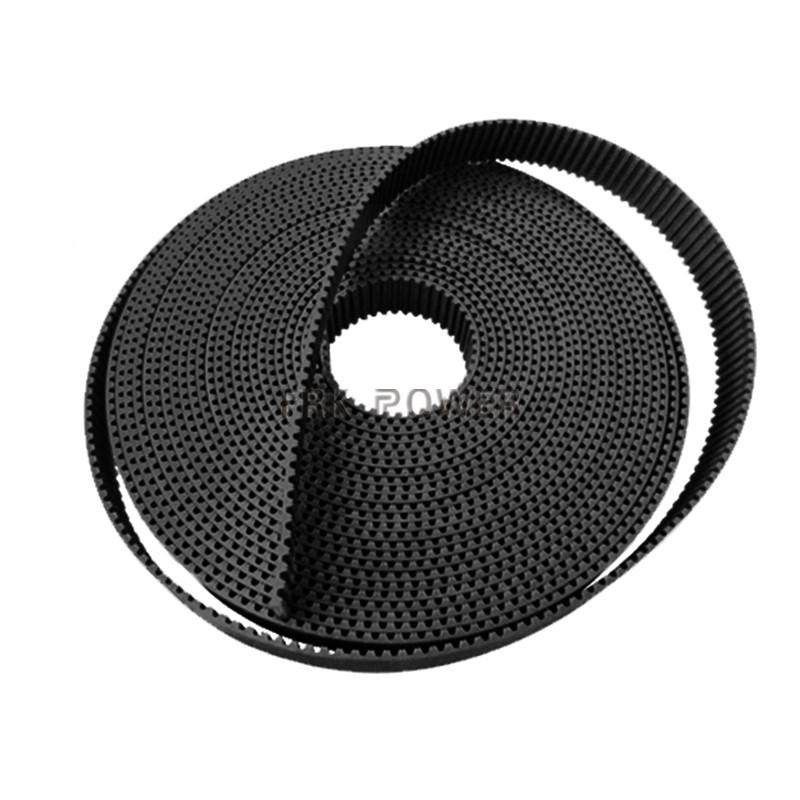

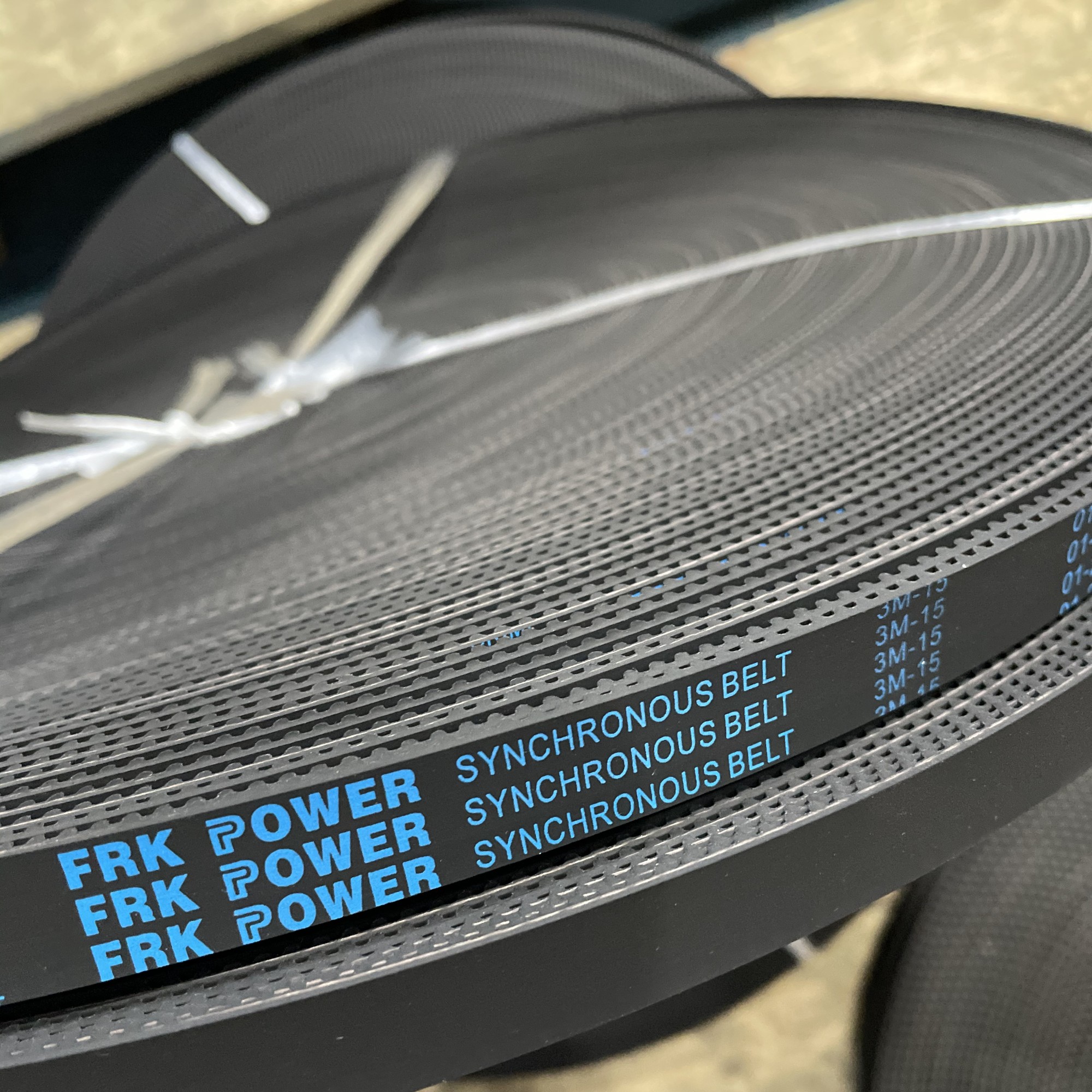

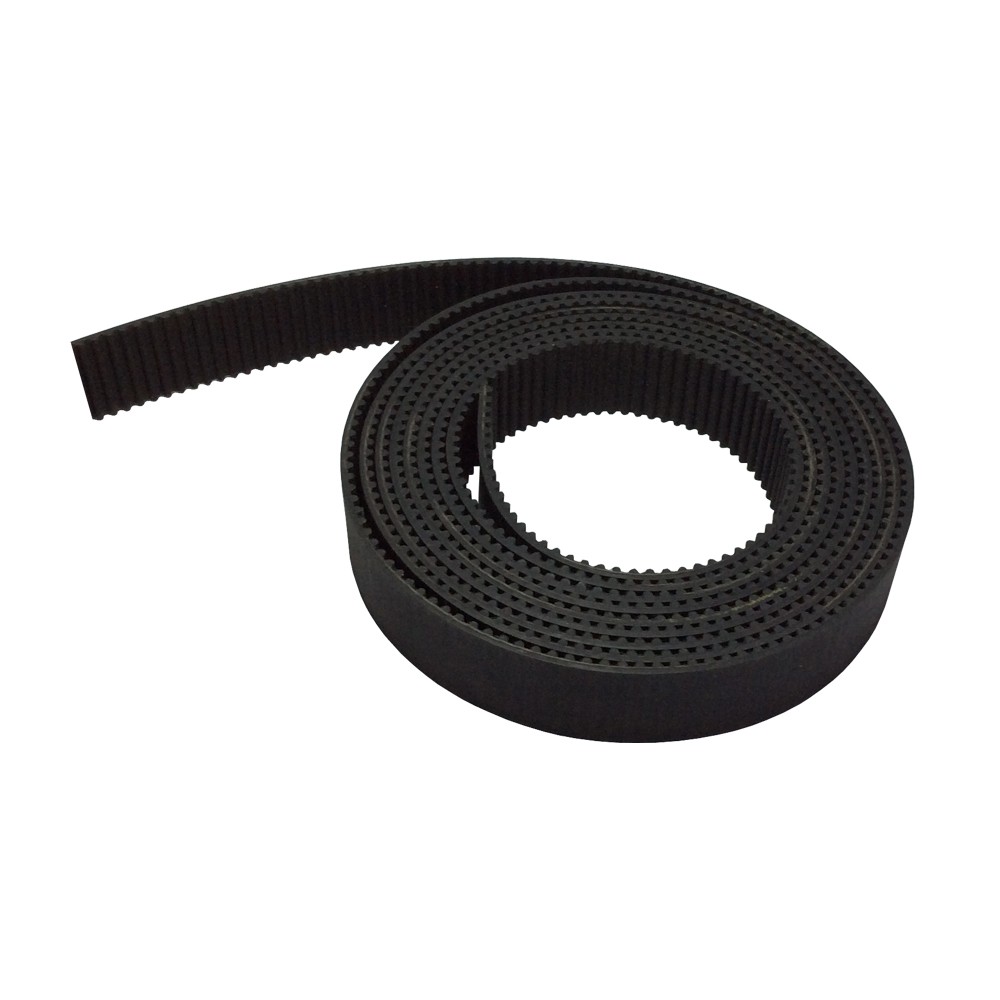

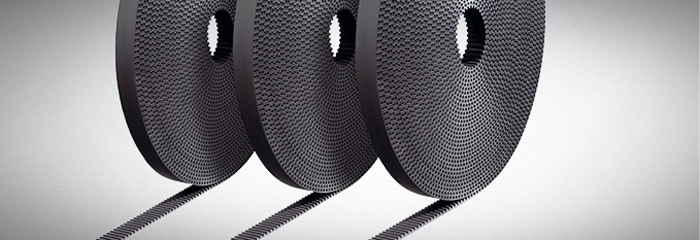

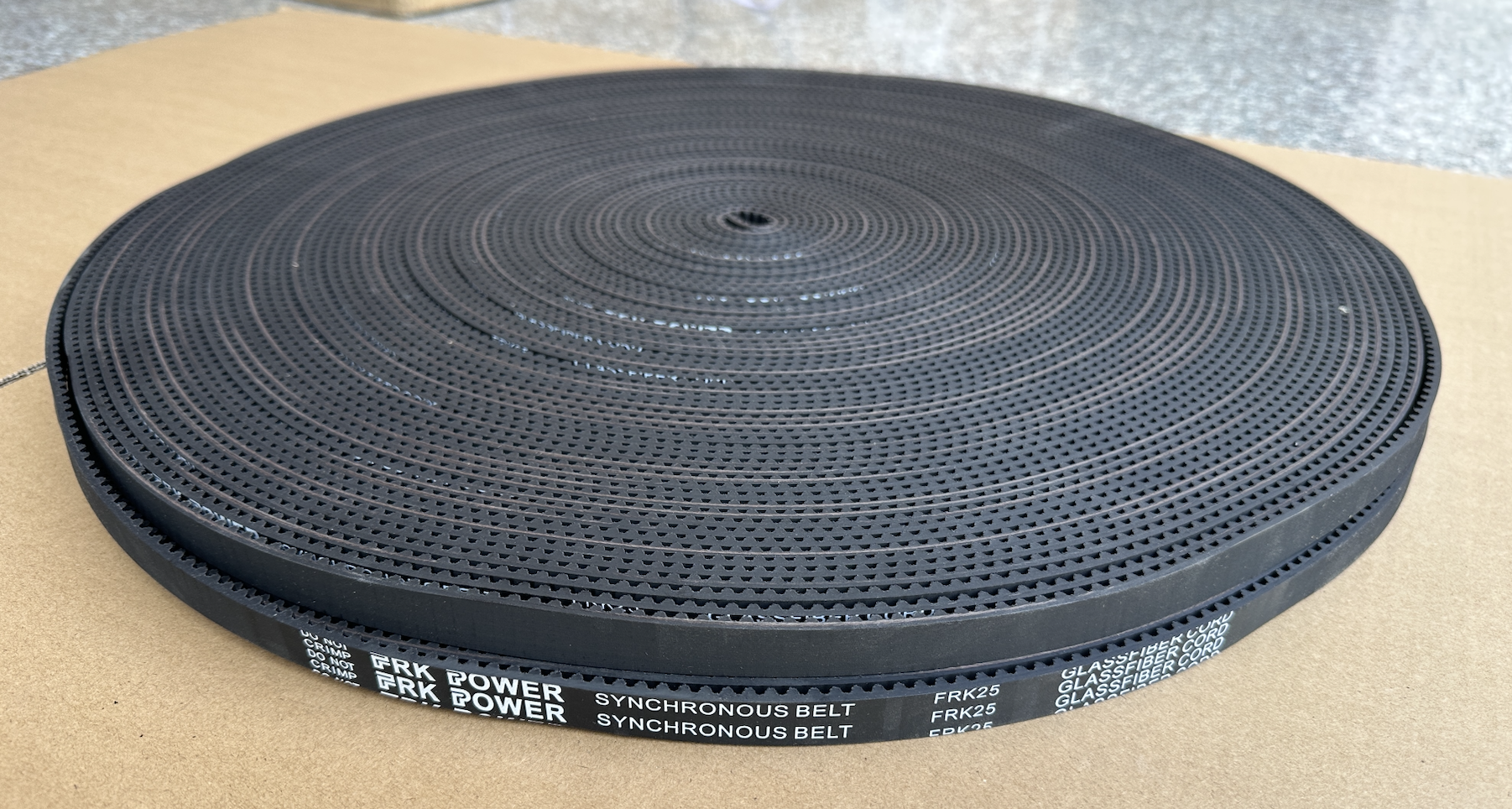

Open Ended Timing Belt

Description

Features

Suitable for reciprocating movement.
Ideal on trolley drives or door opening.
Can be used on long-span drives.
Can be used on long drives where endless belts cannot.
Wide variety of products available.
We now offer Wide Type Ultra PX Belts in addition to PX Belts to meet our customers' needs for high load transmission.

Open-ended Belt Applications

List of models and available lengths

SIZE	WIDTH	LENGTH(meter)	SIZE	WIDTH	LENGTH(meter)
MXL	025"	100	5M	10mm	100
	037"	100		15mm	100
	050"	100		20mm	100
XL	037"	100	8M	15mm	100
	050"	100		20mm	100
	025"	100		25mm	35
L	037"	100	RPP5M	10mm	100
	050"	100		15mm	100
	075"	100	RPP8M	15mm	100
H	050"	100		20mm	100
	075"	100		25mm	35
	100"	35	S3M	10mm	100
T10	10mm	100		15mm	100
	15mm	100		20mm	100
	20mm	100	S5M	10mm	100
	25mm	35		15mm	100
AT10	10mm	100		20mm	100
	15mm	100	S8M	15mm	100
	20mm	100		20mm	100
	25mm	35		25mm	35
AT5	10mm	100	T5	10mm	100
	15mm	100		15mm	100
	20mm	100		20mm	100
	25mm	35		25mm	35
HTD3M	10mm	100	GT2	6mm	/
	15mm	100		8mm	/
				10mm	/
