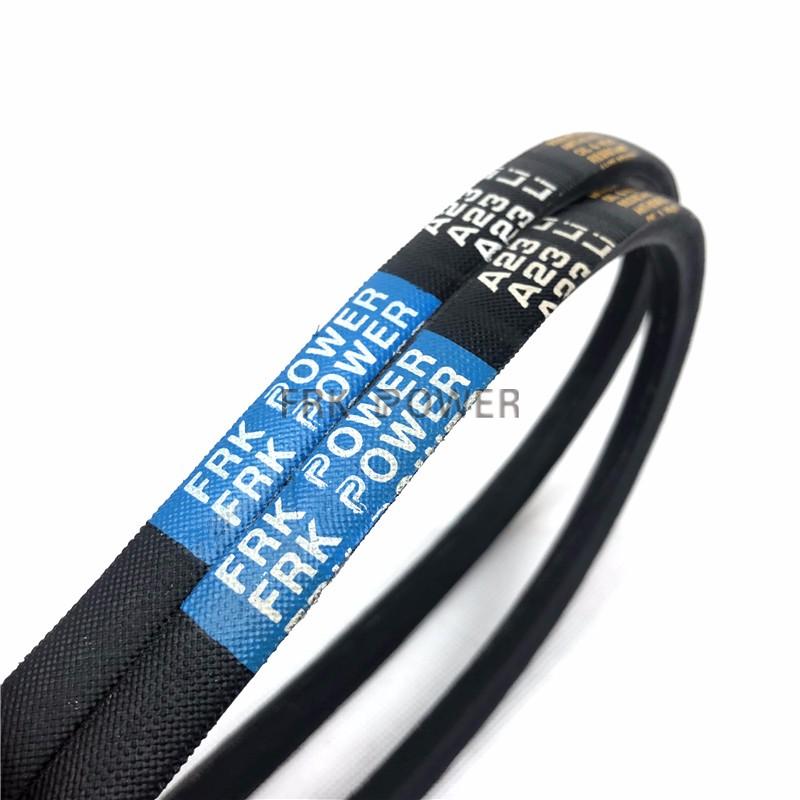

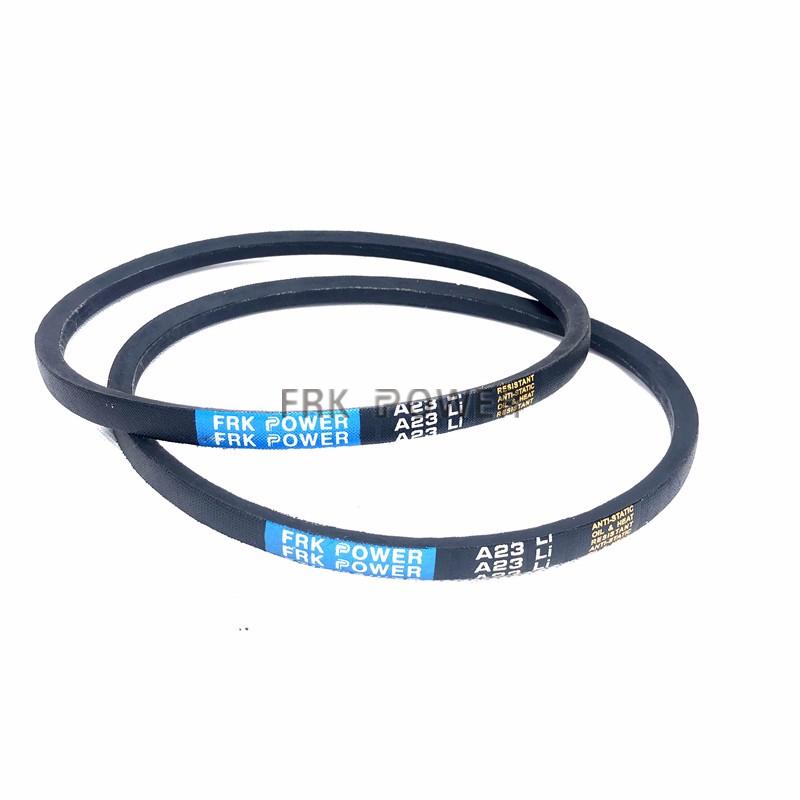

Classcial Wrapped V Belt Z A B C D E

Product Item：Z A B C D E

V BELT

AUTOMOTIVE V BELT

FAN BELT

MOTOR BELT

Description

Features of FRK POWER's V-belt:

Structure

Name	Function	Material
Outside Fabric	Protect the tensile member	Polyester Cotton Canvas
Tensile Member	Core material to pass the dynamic force	Polyester Wire
Top Rubber	Maintain the top shape of the adhesive tape	NR、CR、SBR
Button Rubber	Support and protect the adhesive force of the tensile member	NR、CR、SBR
Button Rubber	Maintain the bottom shape of the adhesive tape	NR、CR、SBR

· The wrapper protects the inner layer,strong durability.
· Special core rubber used,small elongation and long service life
· Excellent heat-resistance,oil-proof,and wearing resistance
· Prevent the generation of the static and keep safe use
· Small friction coefficient and large transmission effect during operation

· Less noise during operation

Size of Section

Type	Top width	Belt Thickness	Angle	Production scope inch
Z	10	6	40	15-120
A	13	8	40	18-360
B	17	11	40	22-550
C	22	14	40	33-600
D	32	19	40	80-600
E	38	23	40	110-600
