Description
Belt characteristics
Pitch:
T (2,5 – 5 – 10 – 20) | AT (3 – 5 – 10 – 20) | SAT (10)
TK5-K6 – TK10-K6 – TK10-K13 (SELF CENTERING) | ATK5-K6 – ATK10-K6 – ATK10-K13 (SELF CENTERING)
MXL – XL – L – H – XH
HTD (3 – 5 – 8 – 14) | RTD (5 – 8 – 14) | STD (5 – 8 – 14)
EAGLE (5 – 8 – 10 – 14)
FLAT (1 – 2 – 2,5 – 3 – 9)
POLY-V K
T10 – AT10 – HTD8 – Total Protection | TT5

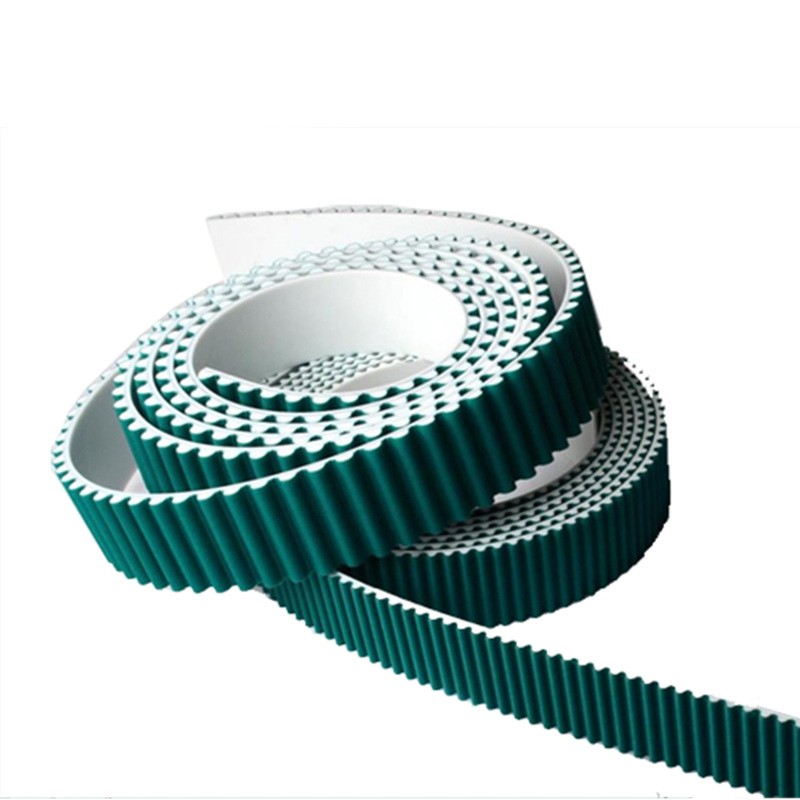

Double sided tooth construction available
Antistatic properties according to ISO 9563
Certified to be according RoHS 2011/65/UE
Working temperatures between: -25°C to + 80°C
Tension cords: steel with high tensile strength (Special cords on request)
Compound: thermoplastic polyurethane 92 Sh. A with high wear resistance
Benefits
Excellent length stability
High abrasion resistance
Maintenance free
High linear and angular positioning precision
